Terex M1700-3 Wash Plant

Description

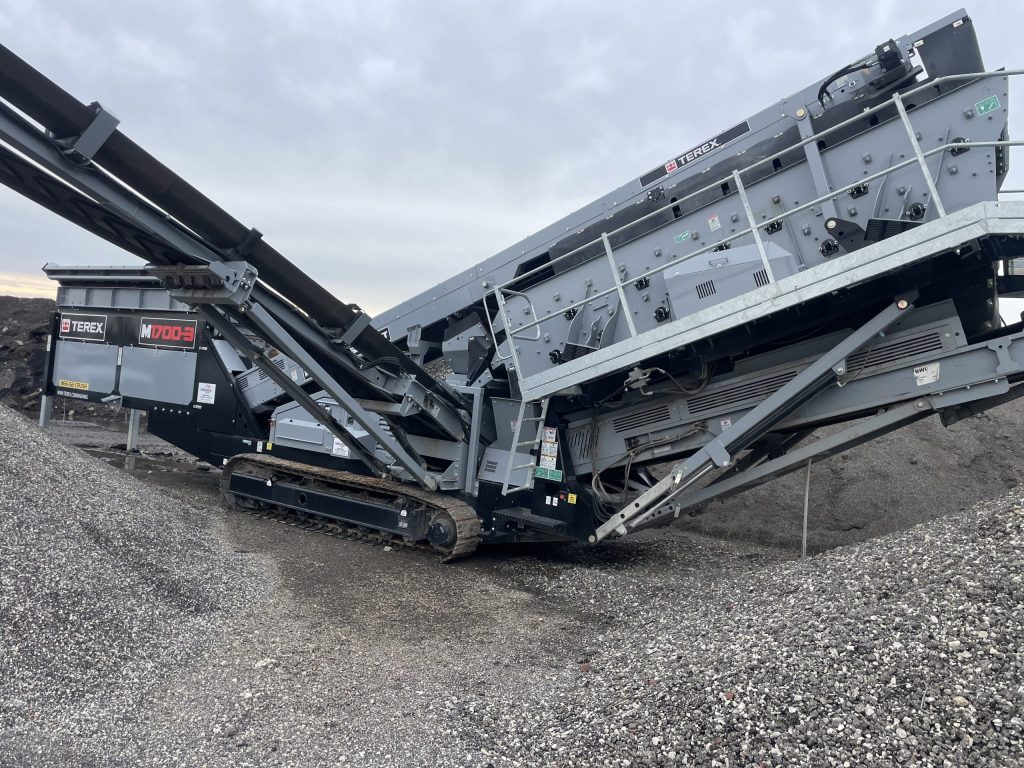

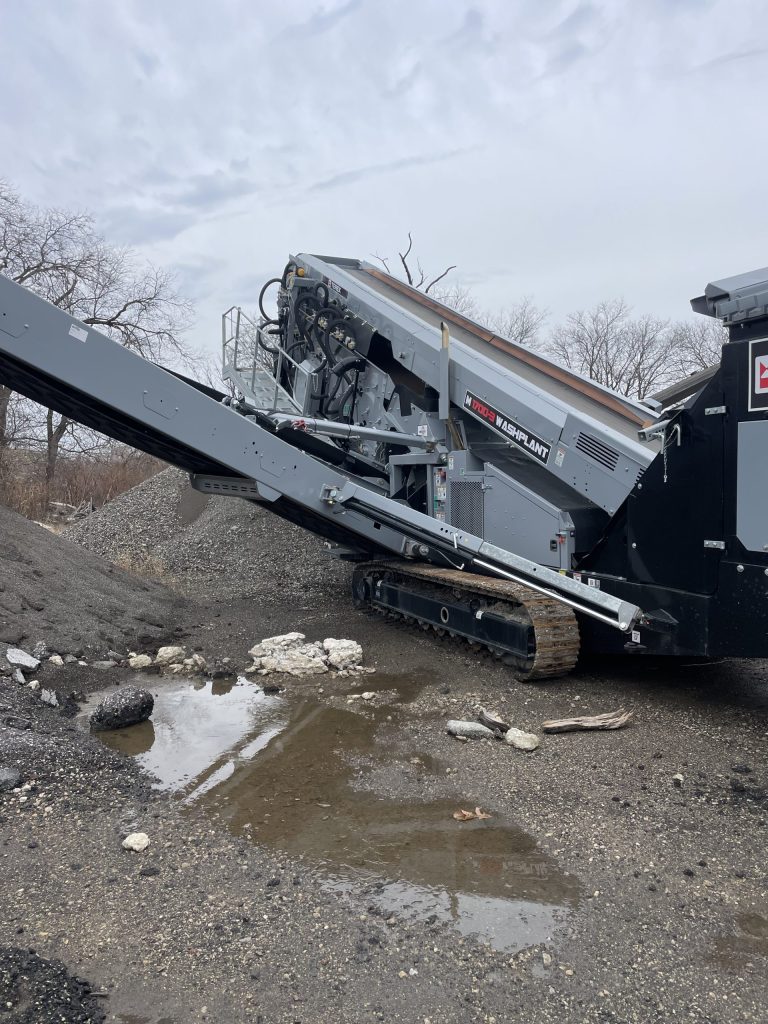

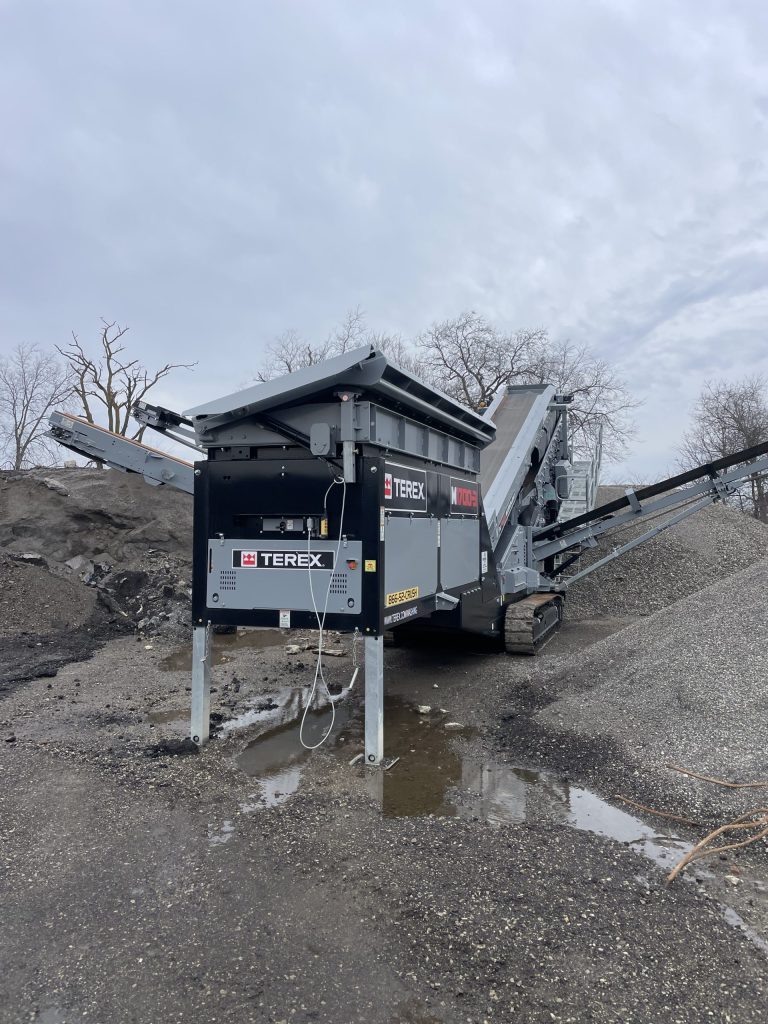

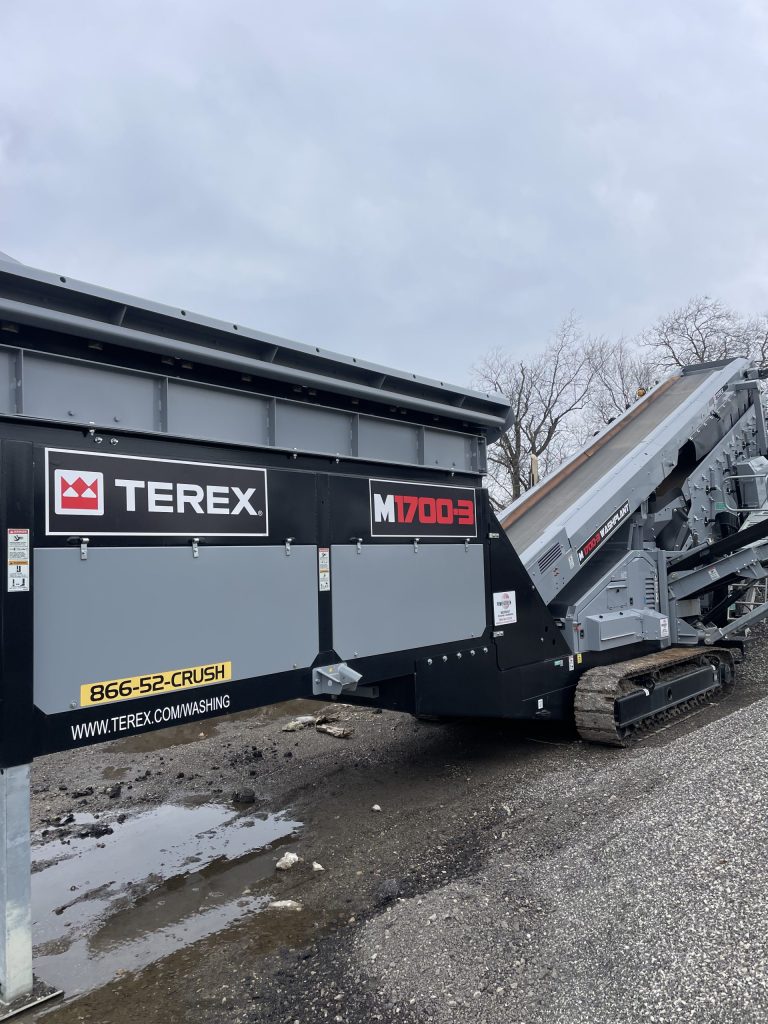

Terex M1700-3 Wash Plant

FEATURES AND BENEFITS
• High capacity (depends on mesh sizes and material type)
• Quick set up time typically under 15 minutes
• Maximum mobility with heavy duty, low ground pressure crawler tracks
• Removable heavy duty pendant remote control system
• Optional radio control system available
• High performance hydraulic system
• Angle adjustable tipping grid with radio control double acting tipping grid rams
• Optional low profile single or double deck vibrating grid option with remote control tipping.
Angle adjustable and fully riveted construction
• Aggregate washing
• Split bottom deck to produce two grades of sand
• Hydraulic folding conveyors
• Hydraulic screen angle adjustment
• Screen walkway and access ladder
APPLICATIONS
• Sand and gravel
• Topsoil
• Coal
• Crushed stone
• Recycling
• Iron Ore

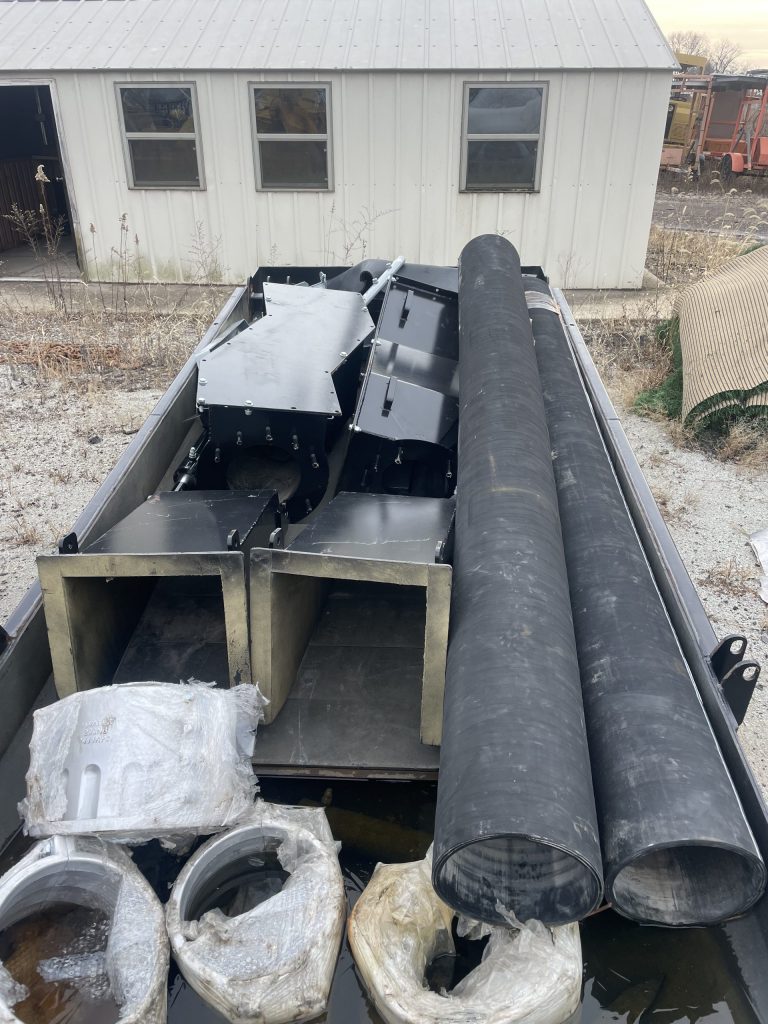

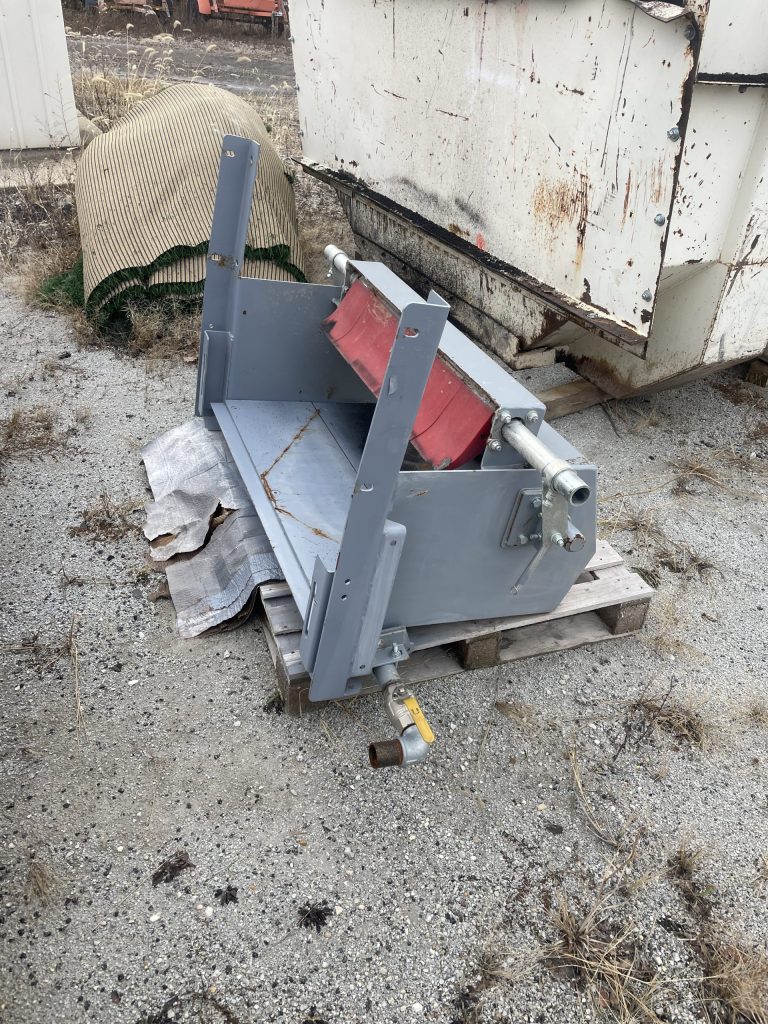

OPTIONS
• 2 or 3 deck
• 12ft 2 deck vibrating grid
• Vibrating grid discharge chute
• Crusher feed chute
• Anti-roll back on main conveyor
• Extended re-circulation oversize auxiliary
conveyor
• Dual power (can be operated electrically)
• Quick release wedge screen tensioning
system for top and middle deck
• Bonded rubber wearplate in washbox
• Sealed pipes with bonded rubber lining
• 14’ x 5’ single or twin grade catchboxes
• Rubber screens
• Wheel or track mobile
• Roll-in bogie prepared
• Roll-in bogie equipped
• Radio control tracks
• Prepared TUV chassis
• Auto lubrication system
• Dry screen tail conveyor
14FT HOPPER
• Adjustable angle tipping grid with integral
loading and wing plates.
• Dual action remote controlled tipping
rams included as standard.

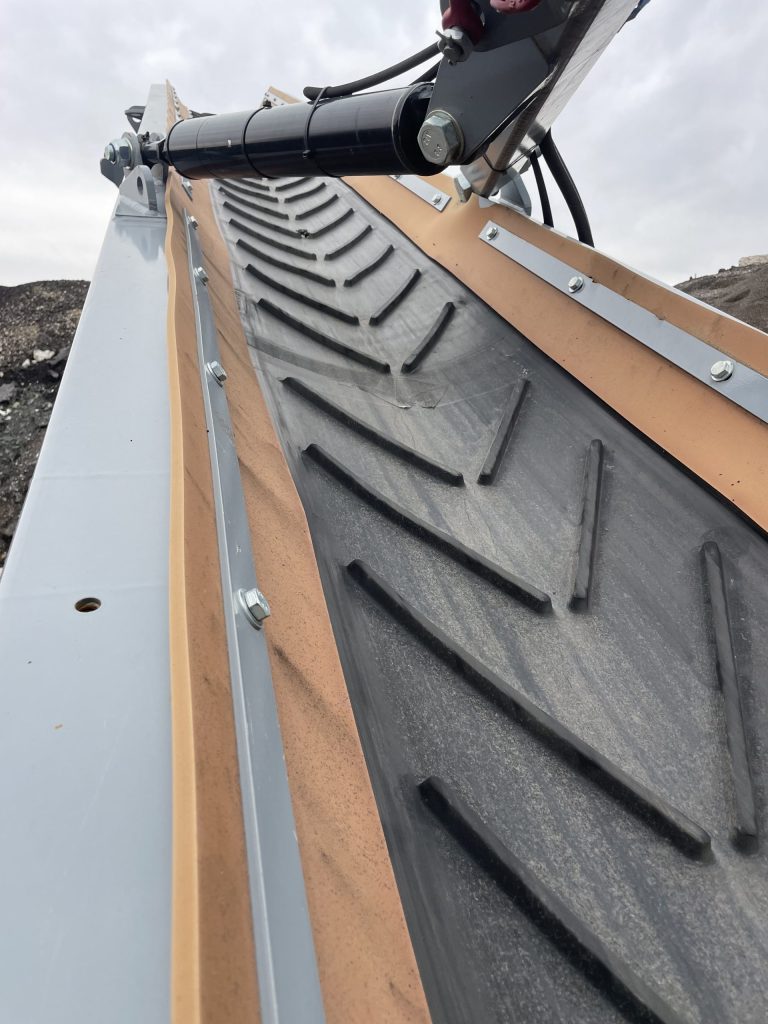

FEED CONVEYOR
• 1050mm (42”), 3 ply belt
• 102mm diameter close pitched rollers
• Drum Centres: 3495mm (12ft hopper)
4105mm (14ft hopper)
• Hydraulic variable speed drive
• Wide mouth opening
• OMS 160 drive motor
• Belt speed: 0-37.9 metres per minute
(124ft per minute)
MAIN CONVEYOR SIDE CONVEYORS
• 1050mm (42”) 3 ply belt
• Hydraulic Drive with Steel Skirting
• OMV 630 drive motor
• Working Angle 18° – 26°, hydraulically
adjustable
• 650mm (26”) 3 ply belt
• Hydraulic drive
• OMH 400 drive motor
• Drum centre: 9670mm (31’ 8”)
• Working angle 22°
• 4.7m (15’ – 5”) stockpile height.
(Measured to drum centre)
• Stockpile volume of 175m3
3 DECK AUXILIARY CONVEYOR
• 650mm (26”) 3 ply belt
• Hydraulic drive
• OMT 500 drive motor
• Drum centre: 7245mm (23’ 8”)
• Working angle 22°
• 4.0m (13’ – 1”) stockpile height. (Measured
to drum centre)
• Stockpile volume of 115m3
SCREEN UNIT
• 2 bearing high performance screenbox
• Grease lubricated bearings
• Pulley & triple belt drive
• Width of screenbox 1.5m (5’)
• Length of screenbox 4.88m (16’)
• Weight of screenbox: 3500kg (7700lbs)
• 4.8 x 1.5m (16’x 5’) top and middle
deck, side tensioned 4 meshes per deck
• 4.3 x 1.5m (14’ x 5’) bottom deck, end
tensioned with 2 meshes per deck

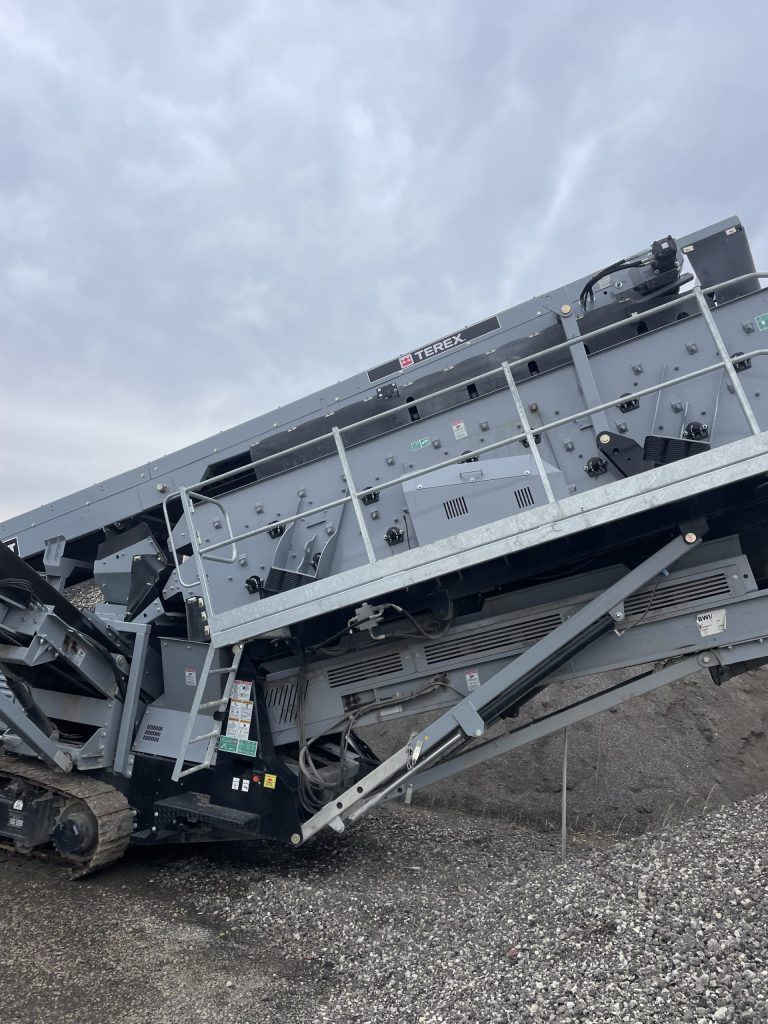

• Full width access catwalks on three
sides of the screenbox for maintenance
and ease of mesh changes
• Screen Speed: 910-920 RPM
• Screen Motor: Hamworthy 2208 motor
• Working angle between 20° and 24°
• Access panels for ease of screen change

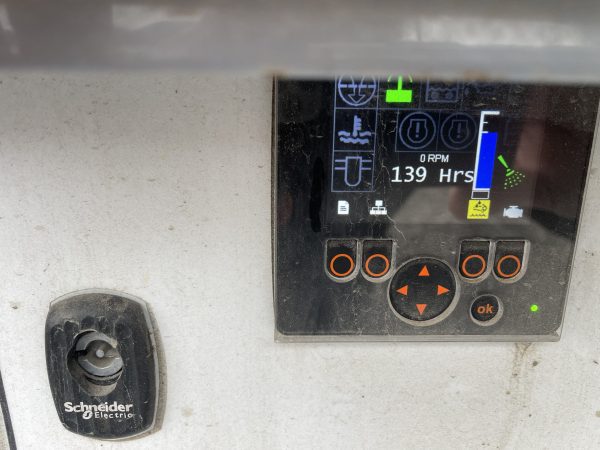

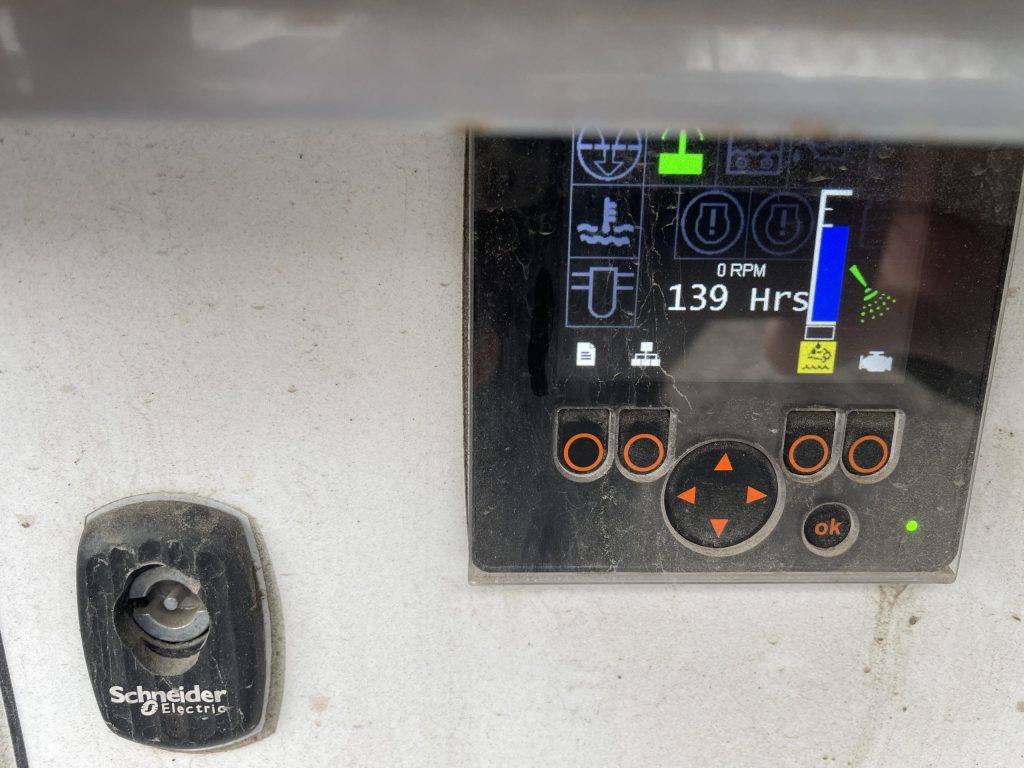

POWER UNIT & HYDRAULIC
• Tier 3 rated Diesel Engine with a power
output of 74kW (100hp) @ 2200rpm.
Engine Mounted Transversely to allow
easy access to the engine for servicing
and maintenance. The power unit is
completely enclosed, sound suppressed
and lockable.
RINSER OPTION

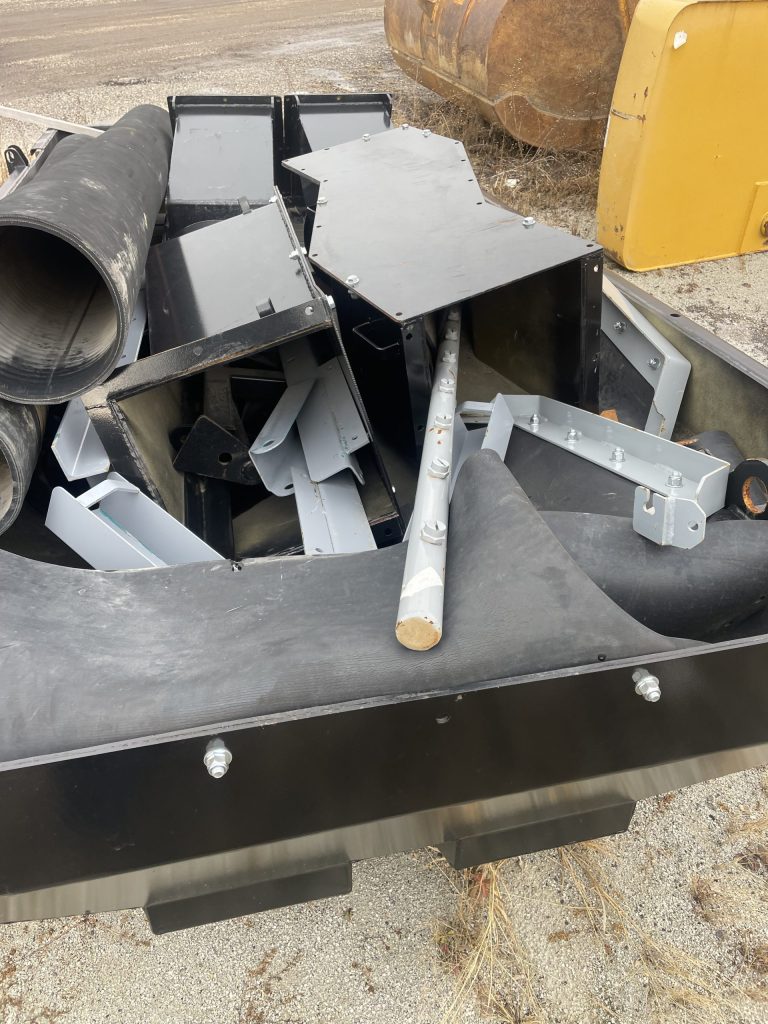

CATCH BOX
WASH BOX
• Hydraulically hinged, making mesh changing easier
• 50-50 fixed division plate
• Adjustable division plates
• 10” twin outlets
• Single or double grade catch box with adjustable
division plates
• Adjustable 5 nozzle spray bar
• Feed conveyor belt scraper
SCREEN BOX 3 DECK SCREEN BOX 2 DECK
• 18 steel spray bars split into 6 bars per deck
• All decks have brass nozzles alternating
between 8 & 7 per bar to give full spray
coverage
• 11 steel spray bars split into 6 bars top
deck, 5 bottom
• All decks have brass nozzles
alternating between 8 & 7 per bar to
give full spray coverage
